If you have ever applied a gentle moisturizer and felt it sting, you know exactly what a damaged skin barrier feels like. It means the “mortar” holding your skin cells together has crumbled, leaving nerve endings exposed and letting hydration escape.
As formulators, our instinct is often to just “add more rich oils.” But here is the hard truth: You cannot fix a chemical structure with just oil.
A true barrier repair cream isn’t just a thick moisturizer. It is a piece of architectural engineering designed to mimic the skin’s biology. In this guide, I will walk you through the chemistry of barrier repair, the “Golden Ratio” of lipids, and how to structure an emulsion that actually heals.
The “Brick and Mortar” Science

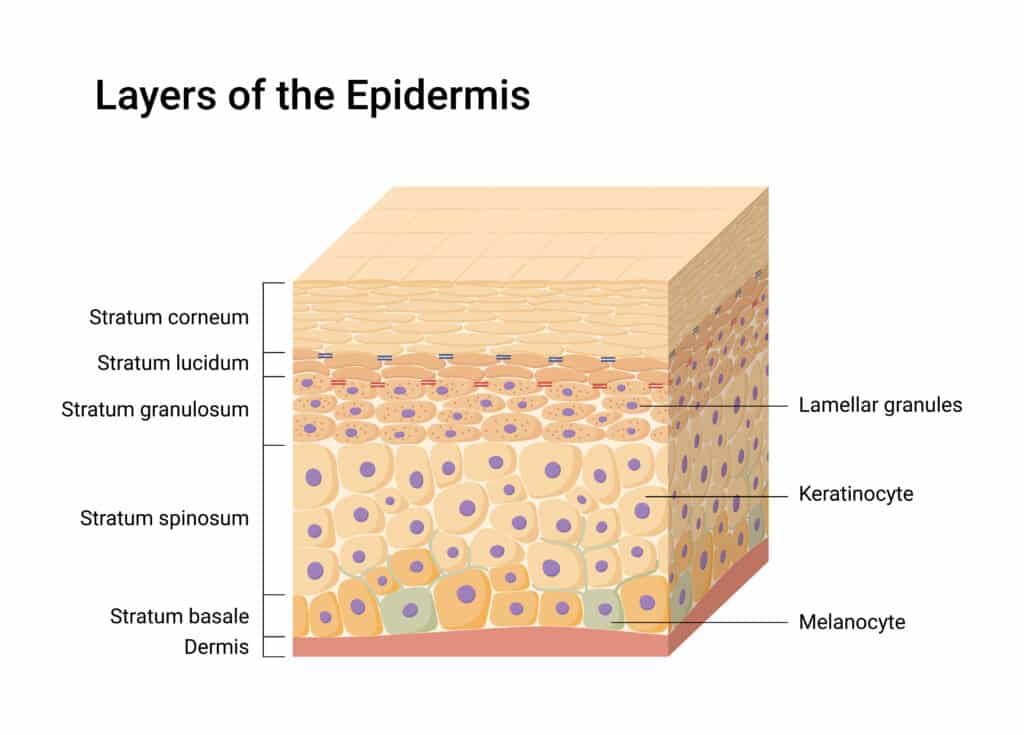

Before we open the lab notebook, we need to understand the target. The outermost layer of our skin (the stratum corneum) is often compared to a brick wall:
- The Bricks: Corneocytes (dead skin cells).
- The Mortar: An intercellular lipid matrix.
When this mortar is intact, skin is plump and hydrated. When it’s damaged (due to over-exfoliation, harsh surfactants, or weather), water evaporates rapidly; a process we call Transepidermal Water Loss (TEWL).
To fix the wall, we need to replace the mortar using the exact same materials the skin uses.
The Holy Trinity: Ceramides, Cholesterol, and Fatty Acids
You cannot simply throw random butters into a beaker and call it a “barrier cream.” The skin’s natural lipid matrix is composed of three specific components in a very specific ratio:
- Ceramides (~50%)
- Cholesterol (~25%)
- Fatty Acids (~15%)
This is often referred to as the 3:1:1 ratio.
⚠️ A Note on the 3:1:1 Ratio: You might notice the percentages below don’t look exactly like “3% Ceramide, 1% Cholesterol.” That’s because the 3:1:1 ratio refers to the molar ratio of the molecules, not the weight percentage in the beaker.
1. Ceramides
These are the heavy lifters. Think of ceramides as the glue. In formulation, we often use Ceramide NP, AP, and EOP.
- Formulation Tip: Ceramides are expensive and hard to solubilize. They need to be heated effectively in the oil phase or added as a pre-dispersed complex in the cool-down phase to prevent crystallization.
2. Cholesterol
Vegetable oils do not contain cholesterol; they contain phytosterols. While phytosterols are great, true barrier repair often benefits from ingredients that closely mimic cutaneous cholesterol (like lanolin or specific bio-synthesized cholesterol).
3. Free Fatty Acids
This is where your plant oils come in. However, not all oils work. You need oils rich in Linoleic Acid (like Safflower, Evening Primrose, or Oat Oil) to reduce inflammation, rather than just high-Oleic oils which can sometimes disrupt the barrier further.
💡 Deep Dive into Oil Chemistry: Understanding fatty acid profiles (Linoleic vs. Oleic vs. Palmitic) is key to formulating high-performance skincare. I cover the chemistry of carrier oils, stability rates, and selection logic in detail; supported by comprehensive reference tables, in my [Facial Oil Serum Formulation Guide].
💡 Formulator’s Note:
Simply adding these ingredients isn’t enough. They need to be arranged in a structure that the skin recognizes. This brings us to the most critical part of formulation: The Delivery System.
The Secret Weapon: Lamellar Emulsions
Standard creams are usually “micellar” emulsions; droplets of oil floating in water.
But a Barrier Repair Cream works best when it is a Lamellar Emulsion.
In a lamellar structure, the emulsifiers form layered sheets (like a puff pastry) of oil and water. This structure is almost identical to the skin’s own lipid layers. When applied, it “patches” the holes in the barrier seamlessly.
How to achieve this?
You need Liquid Crystal Emulsifiers (like Cetearyl Olivate & Sorbitan Olivate or Cetearyl Glucoside & Cetearyl Alcohol). These natural emulsifiers create that sophisticated, silky texture that feels “expensive” and performs scientifically.
🧪 Want to Master Lamellar Structures?
Creating a stable liquid crystal network requires precise heating and shear rates. If you want to stop guessing and access lab-tested emulsion frameworks that explain exactly how to build these advanced textures, check out my complete handbook.
Ingredients That Soothe the Fire
While lipids rebuild the wall, we need to put out the fire (inflammation). A good barrier cream should include a “Soothing Stack” in the water phase:
| Ingredient | Function | Why use it? |
| Panthenol (Vit B5) | Humectant & Healer | Stimulates fibroblast proliferation (skin healing). |
| Allantoin | Mild Keratolytic | Softens rough skin and reduces irritation. |
| Oat Oil / Extract | Anti-inflammatory | Rich in beta-glucan and avenanthramides to stop the itch. |
| Bisabolol | Soothing Active | A concentrated chamomile extract that calms redness. |
(Note: Always check the solubility of these actives. Bisabolol goes into the cool-down oil phase, while Panthenol goes into the water phase.)
Sample Framework: The Barrier Repair Cream
Here is how a chemical engineer structures a formulation for compromised skin. This is not a recipe, but a percentage framework to guide your own experiments.
Phase A: The Hydration Base (65-75%)
- Distilled Water
- Humectants (Glycerin + Propanediol): Keep simple, avoid stinging acidic humectants.
- Chelating Agent: Crucial for stability.
Phase B: The Lipid Matrix (15-25%)
- Lamellar Emulsifier System (e.g., Olivem 1000)
- Barrier Oils (Oat Oil, Safflower Oil, Squalane)
- Fatty Alcohols (Cetyl Alcohol): For structure and cushion.
- Cholesterol / Phytosterols
Phase C: The Active Recovery (Cool Down < 40°C)
- Ceramide Complex
- Bisabolol
- Preservative System: Must be broad-spectrum.
- pH Adjuster: Target pH 5.0 – 5.5.
Common Mistakes to Avoid
- Ignoring pH: Damaged skin has a higher pH than healthy skin. Your cream must be acidic (around pH 5.0) to help enzymes repair the barrier.
- Skipping Preservation: “Preservative-free” is dangerous, especially for damaged skin that is prone to infection. Use a gentle system like Phenoxyethanol/Ethylhexylglycerin.
- Using Fragrance: Essential oils are fantastic, but not for broken skin. Keep barrier creams fragrance-free.
Conclusion: Stop Guessing, Start Engineering
Formulating for damaged skin is one of the most rewarding challenges. It requires you to think less like a chef and more like an engineer. You aren’t just mixing ingredients; you are building a microscopic structure that restores health.
Once you master the Lamellar Emulsion, you can create everything from lightweight day fluids to rich night masks. The chemistry is the same; only the ratios change.
